• Model: 90YV0M17-M0NA00
• VRAM: 12GB DDR7
• Clock Speed: 2542 MHz| 2572 MHz Boost
• Outputs: 1x HDMI, 3x DisplayPort
• Cooling: Dual Fan

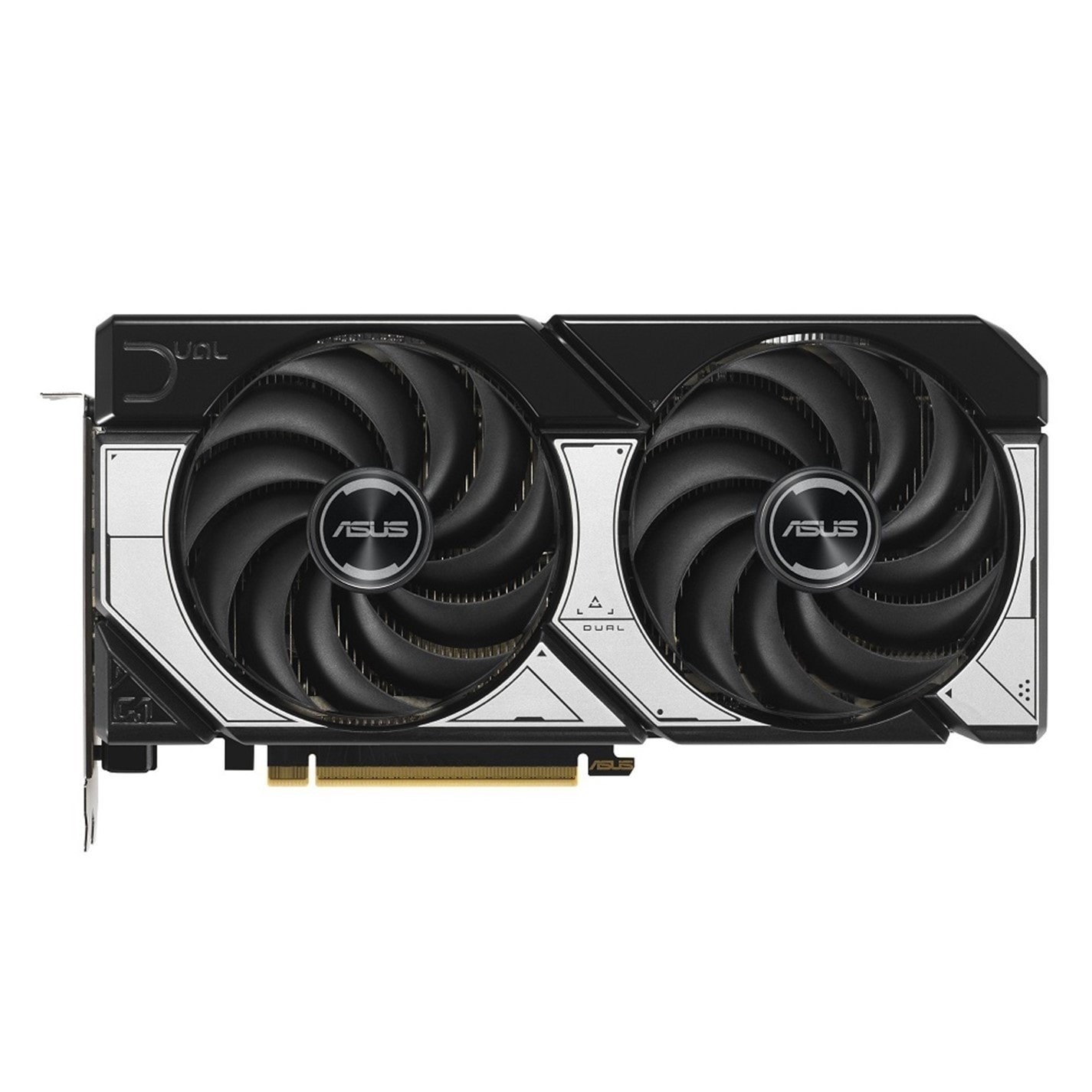

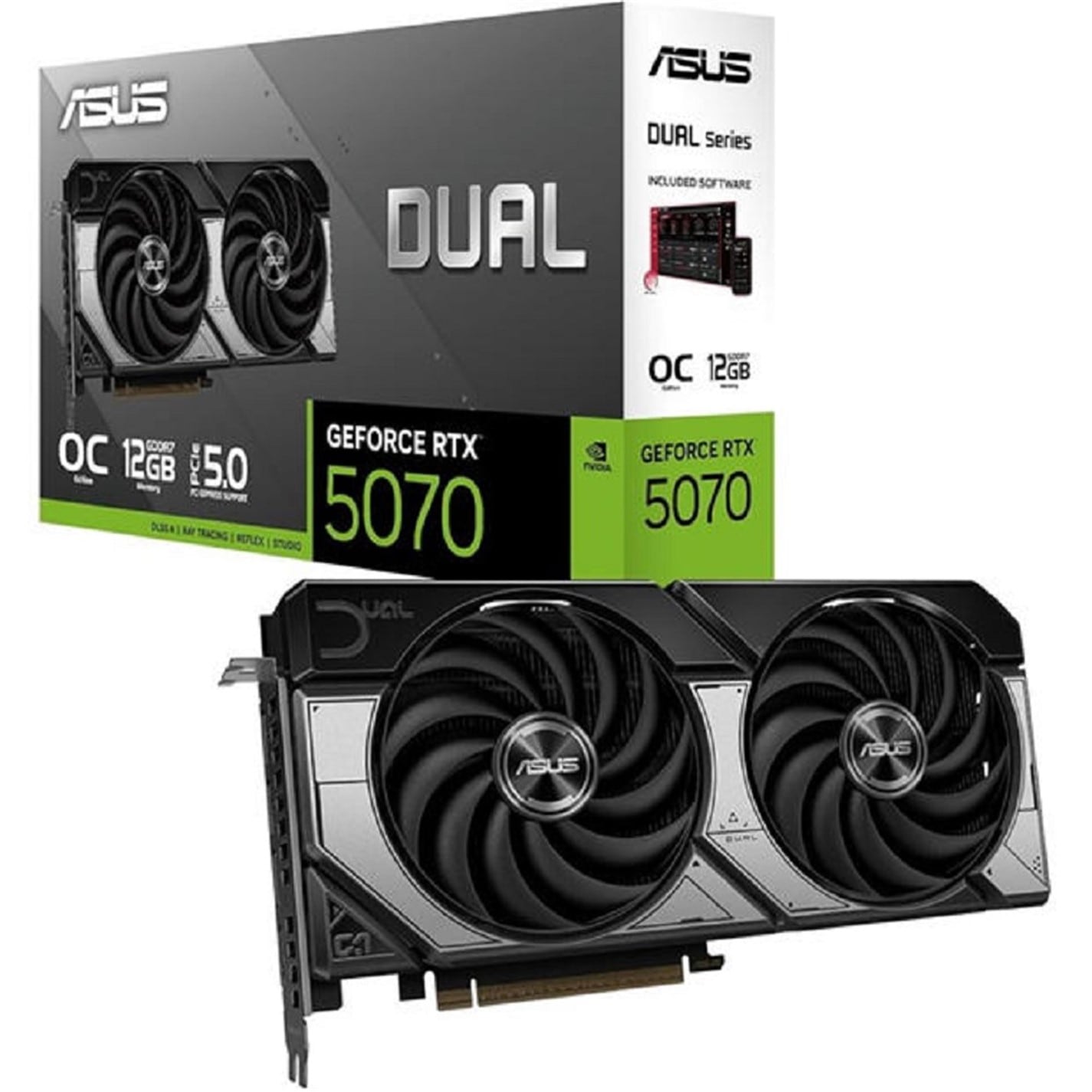

ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Compact Dual-Fan Design: A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades: Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
Dual Ball Fan Bearings: Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented Backplate: A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Features
- Graphic Engine: NVIDIA® GeForce RTX™ 5070
- AI Performance: 988 TOPs
- Bus Standard: PCI Express 5.0
- OpenGL: OpenGL®4.6
- Video Memory: 12GB GDDR7
- Engine Clock: OC mode: 2572MHz, Default mode: 2542MHz (Boost Clock)
- CUDA Core: 6144
- Memory Speed: 28 Gbps
- Memory Interface: 192-bit
- Resolution: Digital Max Resolution 7680 x 4320
- Interface: x 1 (Native HDMI 2.1b), x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)
- Maximum Display Support: 4
- NVlink/ Crossfire Support: No
- Accessories: 1 x Speedsetup Manual, 1 x Thank You Card, 1 x Adapter Cable (1 to 2)
- Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
- Dimensions: 249 x 126 x 50.6 mm
- Recommended PSU: 750W
- Power Connectors: 1 x 16-pin
- Slot: 2.53 Slot
- SFF Ready: Compatible
